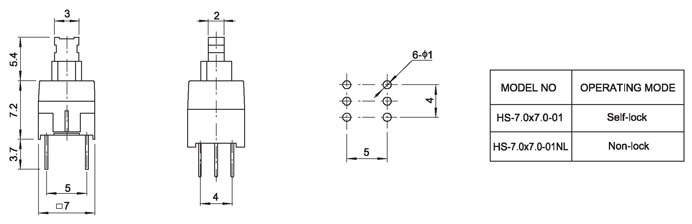

Specification of HS Push Button Switch Series
Temperature: -40 - +70℃
Rated Load: DC 60V 0.1A
Contact Resistance: ≤30MΩ
Insulation Resistance: ≥100MΩ
Withstand Voltage: AC250V(50Hz)/min
Actuating Force: 250g±100g
Life: 100000 times
Note: The switch locking form consists of self-lock and non-lock.
